- Tight leakage control
- Hydrodynamic back pumping effect maximizes leakage control
- Avoids the trapping of pressure between tandem seals or between seals and scrapers
- Low friction due to a reduced contact area between seal and mating surface
- Continuously lubricated
- Long service life
- Simple design

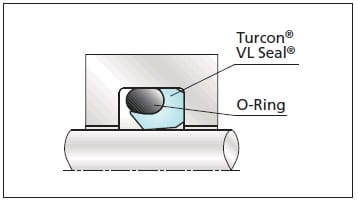

- Uses standard size O-Ring as an energizer
![](/-/media/tss-media-repository/oil-and-gas/images/turcon-vl-seal_oring.jpg?h=202&iar=0&w=358&rev=a00c38b4e9d54dd6955764cbbf345442&hash=809DBBD4017CAD8A7BC08B7FA3A0E376)

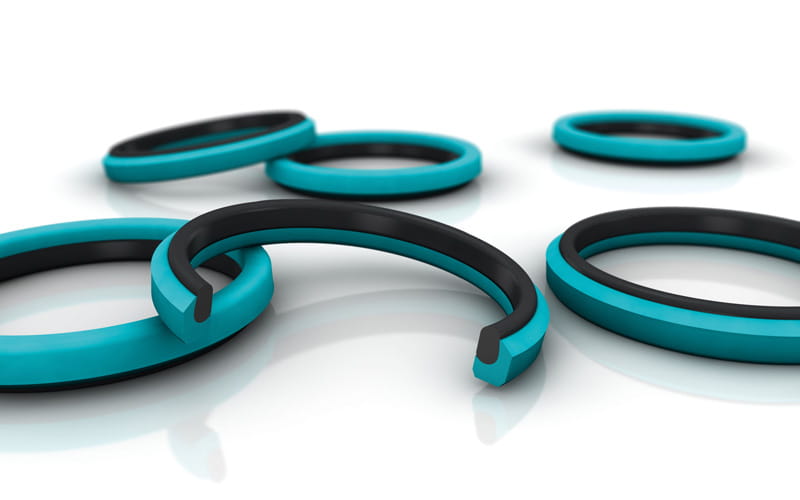

The Turcon® VL Seal® was developed as the next generation unidirectional rod seal. The sealing mechanism of Turcon® VL Seal® is based on the hydrodynamic properties of the seal.
The specially formed seal edge has a steep contact pressure gradient on the high-pressure side and a shallow contact pressure gradient on the low-pressure side. This ensures that the fluid film adhering to the piston rod is returned to the high-pressure chamber on the return stroke of the rod. The micro-fluid layer that is carried out of the high-pressure chamber when the piston rod is extended is therefore prevented from causing leaks.
![](/-/media/tss-media-repository/oil-and-gas/images/turcon-vl-seal_lubrication.jpg?h=400&iar=0&w=355&rev=5dafa5b13c2e4f77972f421aa41d65ba&hash=ADD7667082FCCB261400AF0BD1A425AE)

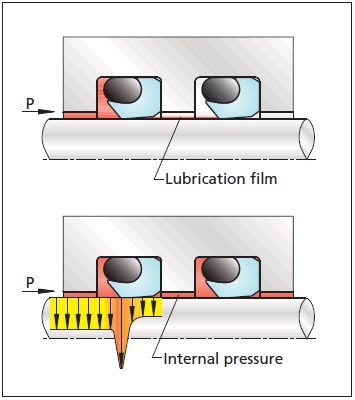

The return delivery property of the Turcon® VL Seal® prevents the build-up of the inter-stage pressure that is normally associated with tandem seal configurations. Inter-stage pressure depends on system pressure speed, stroke length and groove design.
The presence of hydraulic oil around the seal ensures a very long service life, as the seal will always be adequately lubricated.Turcon® VL Seal®
Typical Oil & Gas Applications Include:
Parameters | Values |
---|---|
Operating Pressure |
5,800 psi / 60 MPa |
Speed |
Up to 50 ft/s / 15.0 m/s with reciprocating movements |
Temperature Range |
-54 °C to +260 °C / |
Media |
Mineral oil-based hydraulic fluids, flame-retardant hydraulic fluids, environmentally-safe hydraulic fluids (bio-oils), water and others, depending on the elastomer material |
