Metal End Cap Seals for Oil and Gas Applications

Metal End Cap Seals

  • Chemically-bonded metal end caps provide a high level of extrusion resistance and metal-to-metal sealing
  • Elastomer sealing element provides leak tightness against sub-optimal tubing surface finishes
  • Custom engineered to fit existing tube sizes
  • Manufactured with RGD and sour gas resistant materials compliant with NORSOK, API and Total standards for demanding downhole environments

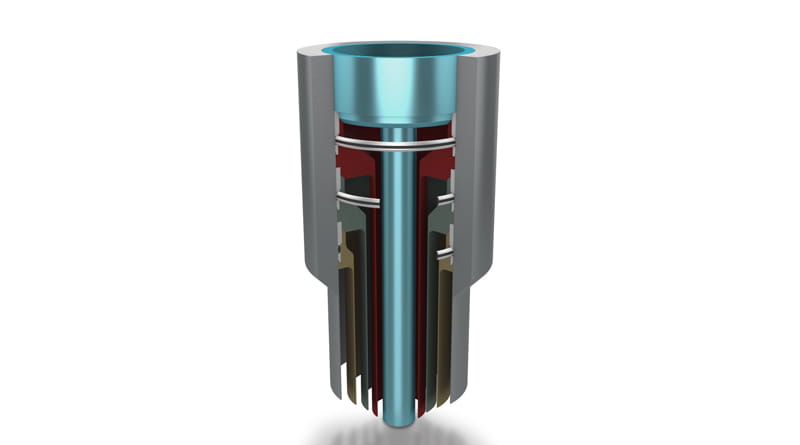

Metal End Cap Seals are custom engineered elastomer-to-metal seals that combine the benefits of a metal-to-metal component with the flexibility of an elastomer seal for maximum extrusion resistance in high pressure wellhead sealing environments.

View Metal End Cap Seals Data Sheet

Typical Oil & Gas Applications Include:

High pressure wellhead sealing environments, such as casing strings and tubing hangers.

Technical Data

Temperature Range

-25 °C to +177 °C
-13 °F to +350 °F

Pressure Resistance

100 MPa
15,000 psi

Sizes Available

Custom engineered to suit application required

Application

For static use in high pressure wellhead sealing environments, such as casing strings and tubing hangers
