Combining the benefits of integral support components with the flexibility of an elastomer seal, the XploR™ S-Seal and XploR™ FS-Seal offer maximum extrusion resistance in demanding high pressure sealing environments.


Commonly known as spring seals, the XploR™ S-Seal and XploR™ FS-Seal are custom engineered, spring-energized elastomer seals. They combine the benefits of integral support components with the flexibility of an elastomer seal.


These seals ideal for use in numerous chemical processing, chemical transportation and oil and gas applications, such as oilfield casing and tubing.
01_XploR_Webinar_800x450

Webinar - XploR™ S-Seal XploR™ FS-Seal

Join our sealing experts to take an in-depth look at these new, spring-energized, static seals, which have been specially developed to offer leak-free sealing performance under extreme pressures.

Download the flyer XploR™ S-Seal and XploR™ FS-Seal
Watch the webinar on-demand

Features & Benefits

  • Single piece bidirectional elastomer seal for high pressure applications
  • Integrally molded helical springs provide a high level of extrusion resistance in a single piece, compact sealing element
  • Flexibility given by the springs allows installation in closed grooves
  • Elastomer sealing element provides leak tightness against sub-optimal tubing surface finishes
  • Custom-engineered to fit existing tube sizes
  • Materials certified to NORSOK, API and Total standards for demanding downhole environments
  • Withstand pressures up to 103.4 MPa / 15,000 psi
xplor_s_fs_seal_flyer

Flyer

Learn how the XploR™ S-Seal and XploR™ FS-Seal perform under pressure

Read more

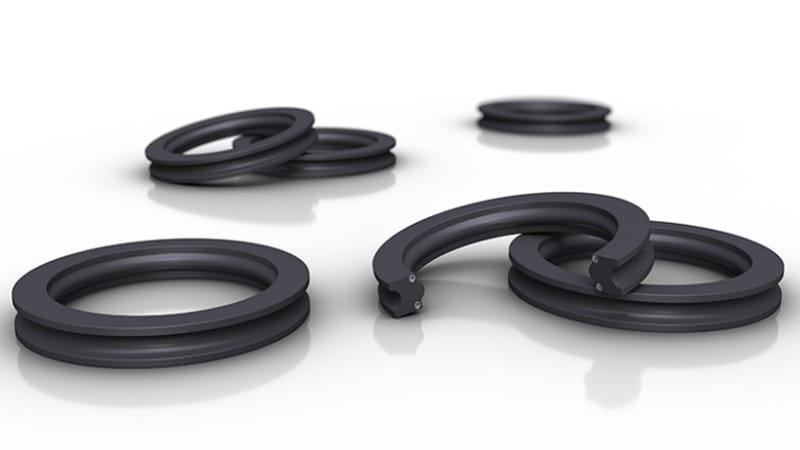

rubber-plastics-XploR

More to XploR

Find out about the engineering behind these two seals
Read the article
Orkot Cylinders

Application Example

High pressure wellhead sealing environments, such as casing strings and tubing hangers.
Read more
Technical Data

Temperature Range

-20 °C to + 200 °C
-4 °F to + 392 °F

Pressure Resistance

100 MPa
15,000 psi

Sizes Available

Custom engineered to suit application required

Speed

For static use only

Media

Mineral oil, synthetic fluids, water-based hydraulic fluids and
other media depending on elastomer material selection.
